OKK

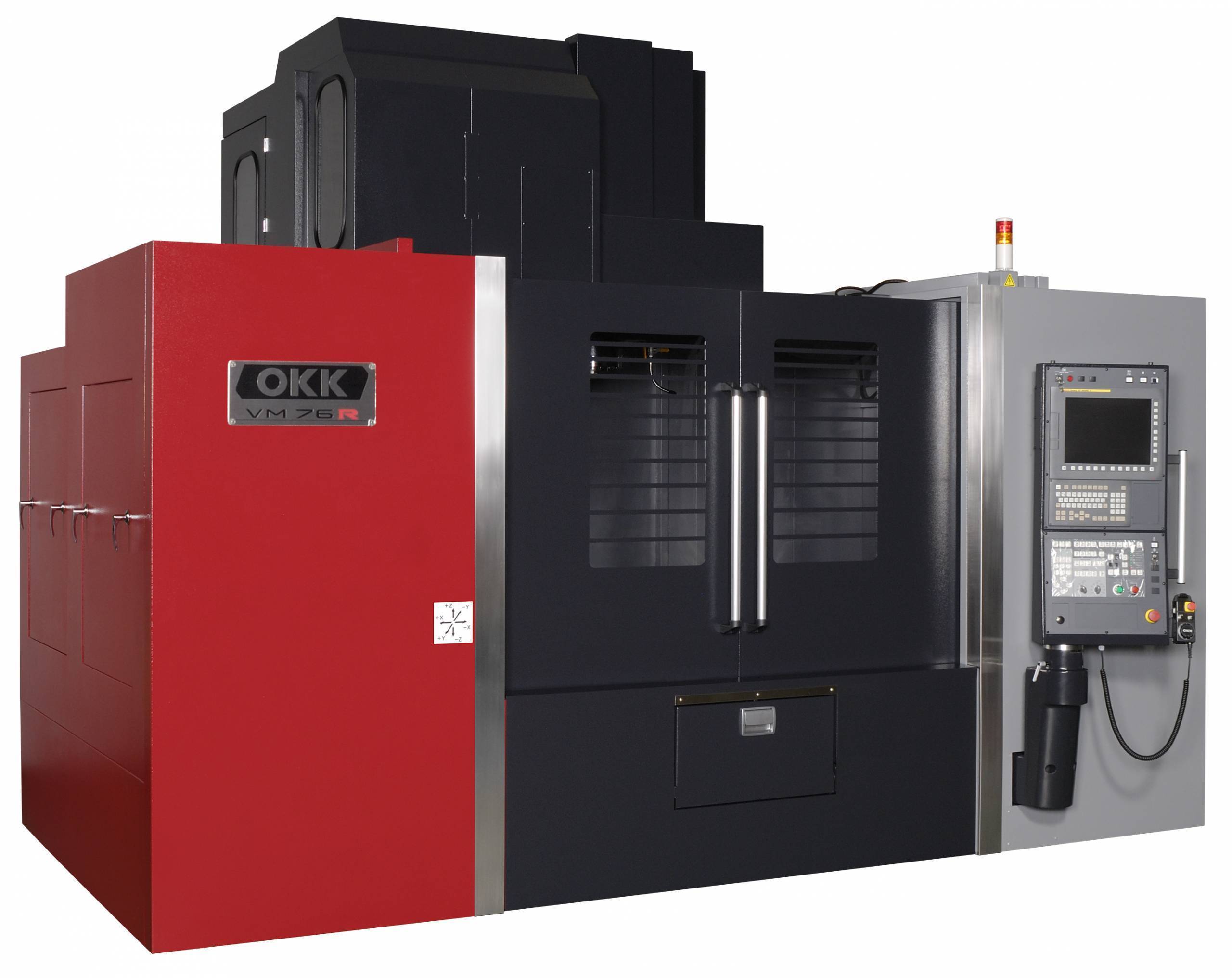

VM76R
*Availability of machines is based on region. Contact your local Methods office to learn more.

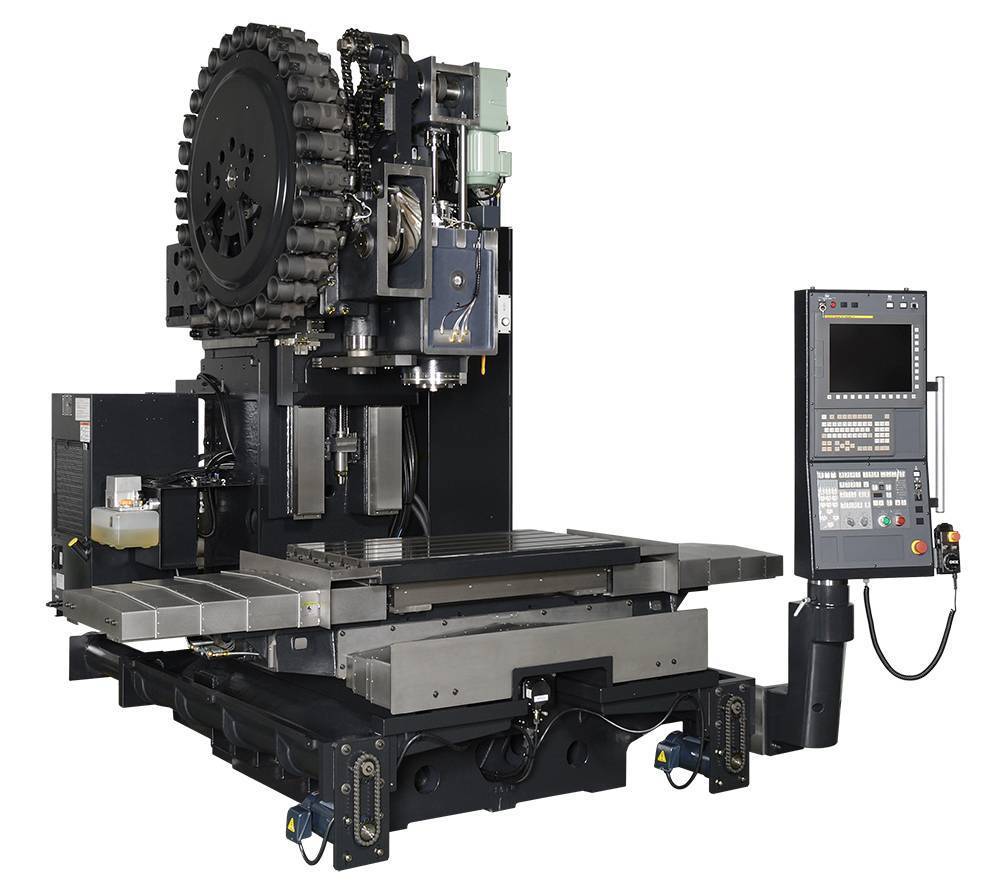

The VM/R series increased rigidity of the main body and the spindle to provide even higher cutting performance. Its feed axes utilize highly rigid and accurate box-ways like conventional machines. This enables machining of not only general parts but also parts made of difficult-to-cut materials such as titanium. The main body design delivers heavy and accurate machining in an ergonomic friendly design.
Request Information
Or call 1-877-668-4262
Product Details
Features & Benefits
- Expanded working area
- Improved accessibility
- Increased main body rigidity
- Core chilled ball screws
- Double anchored support system
- Space saving design for economical use of floor space
- Coil-type chip conveyor
- box ways construction
Technical Data
Travel
- X-Axis Travel
- 60.6" (1540mm)
- Y-Axis Travel
- 29.9" (760mm)
- Z-Axis Travel
- 26.0" (660mm)
- Table Top to Spindle Nose
- 5.9" - 31.9" (150mm - 810mm)
Table
- Table Work Surface Area
- 61.0" x 29.9" ( 1550mm x 760mm)
- Table Load Capacity
- 3307 lbs (1500 kg)
Feed Rate
- Rapid Traverse Rate X/Y
- 945 in/min (24 m/min)
- Rapid Traverse Rate Z
- 787 in/min (20 m/min)
- Cutting Feed (X/Y/Z)
- 787 in/min (20 m/min)
Spindle
- Spindle Power
- 40/34 HP
- Spindle Speed
- 12,000 rpm
- Spindle Taper
- CAT50
Tools
- Standard Number of Tools
- 30
- Maximum Tool Weight
- 44 lbs (20 kg)
- Maximum Tool Length
- 13.8" (350 mm)
- Maximum Tool Diameter
- ø 4.06" (103 mm) / ø 7.87" (200 mm) without tool in adjacent pots
- Tool Changing Time- Tool to Tool
- 2.0 sec (Speed is changeable for heavy-weight tools)
General
- Machine Weight
- 28,700 lbs (13,000 kg)
- Machine Control
- FANUC F31i-B
