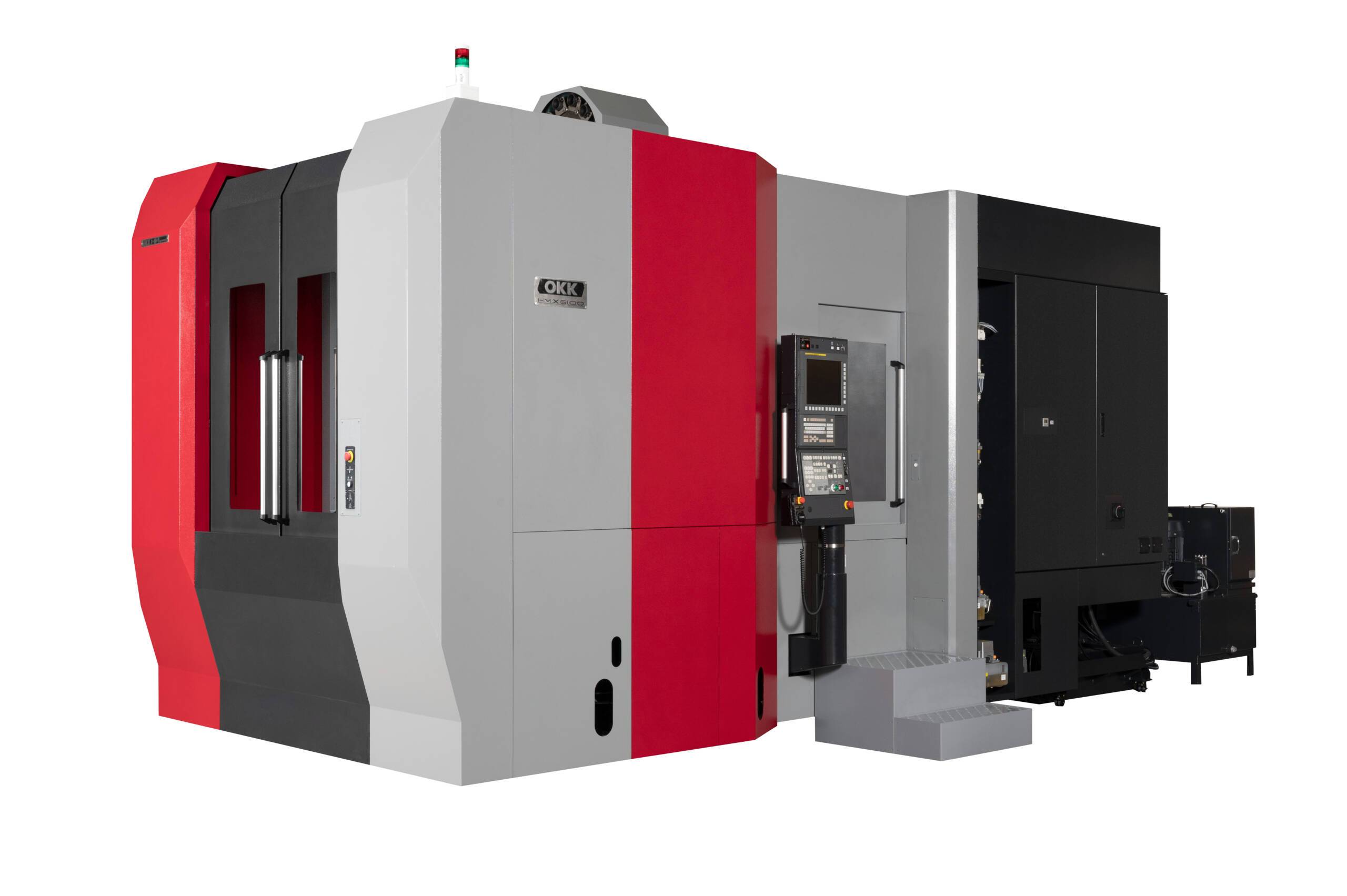

HM-X6100
*Availability of machines is based on region. Contact your local Methods office to learn more.
As with all OKK machines we paid special attention to the rigidity of the cast body, built solid and featuring our massive liner roller guides and large-diameter ball screws for the feed system, allowing the HM-X Series to easily cut exotic materials. All OKK horizontals feature Core chilled pre-tensioned and double-anchored ball screws in order to maintain the high accuracy needed throughout long hours of machining.
The HM-X6100 is a High Power 50 Taper with Dual Anchored Core Chilled Ball Screws and Linear Cross Roller Guides, used successfully by many of our premier Aerospace customers who have put them through some of the most extensive tests and achieved more than impressive results in titanium, a material that demands Box Ways from our competitors.
Or call 1-877-668-4262
Product Details
Features & Benefits

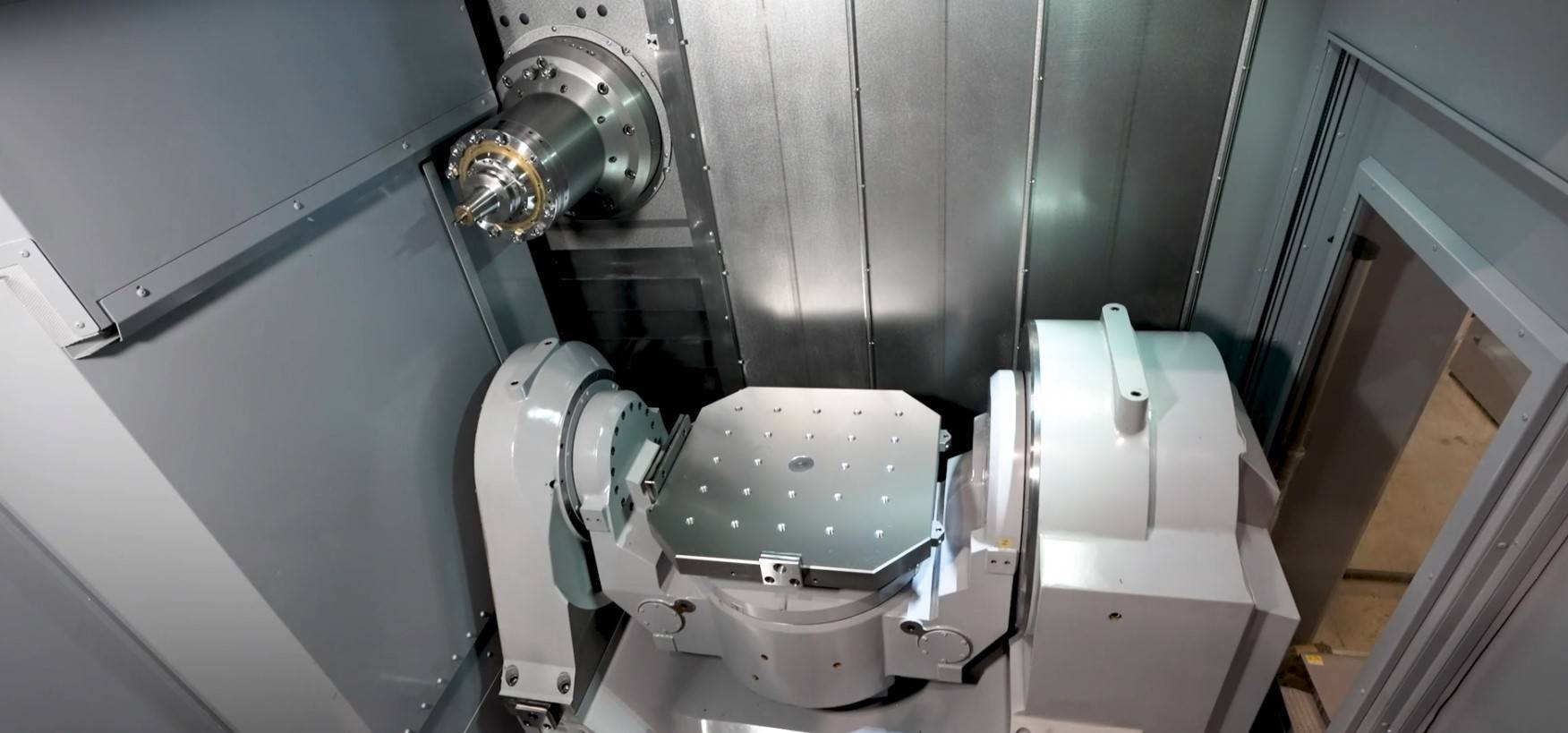

- 5-axis trunnion table
- Direct-turn APC
- Heavy load capacity linear roller guides
- Core chilled pre-tensioned and double-anchored ball screws
- High load capacity feed motors
Technical Data

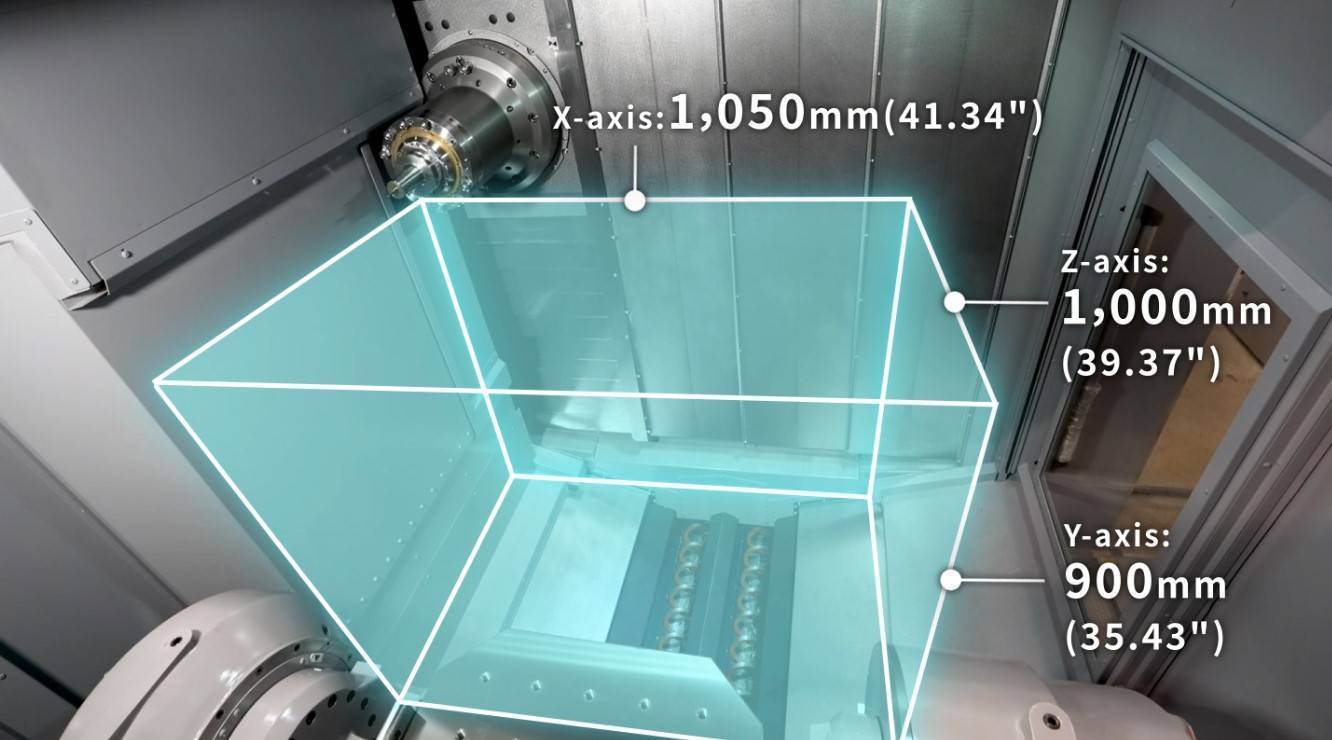

TRAVEL
- X-Axis
- 1,050 mm
- Y-Axis
- 900 mm
- Z-Axis
- 1,000 mm
- A-Axis
- -140° to +50°
- B-Axis
- 360°
- Table Top to Spindle Center
- -10.63 in. to 24.80 in.
PALLET
- Table Size
- Ø 600 mm (31.4 in.)
- Table Load Capacity
- 650 kg (1,433 lbs)

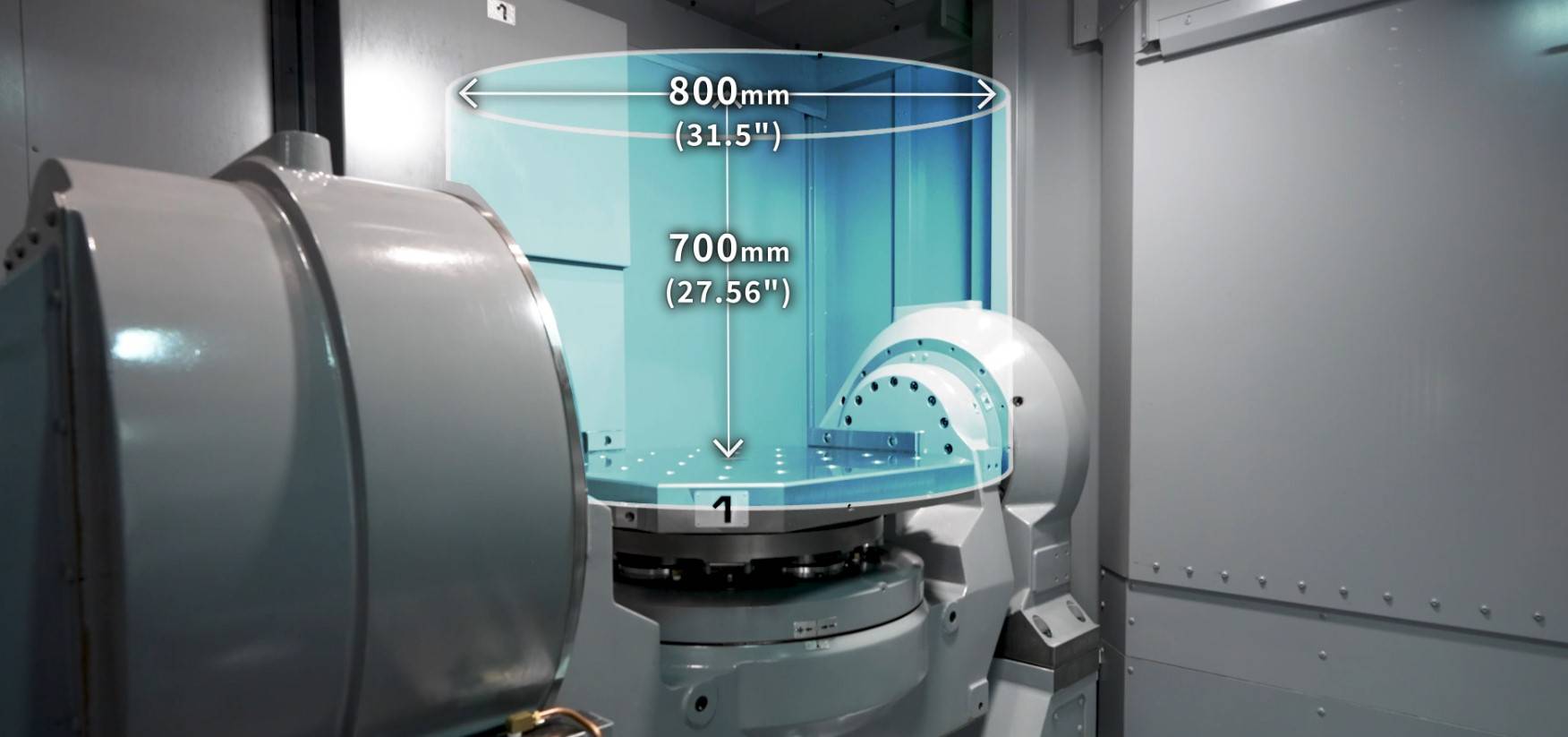

- Maximum Workpiece Size
- Ø 800 mm x 700 mm
- Maximum Workpiece Height
- 700 mm
FEED RATE
- Rapid Traverse Rate (X / Y / Z)
- 75 / 54 / 75 m/min
- Cutting Feed (X / Y / Z)
- 1,575 ipm (40 m/min)
SPINDLE
- Spindle Power
- 12,000 rpm | 60/35HP
- Spindle Taper
- CAT50 (Optional HSK)
TOOLS
- Standard Number of Tools
- 60 [Field installable up to 236]
- Maximum Tool Weight
- 30 kg (66 lbs)
- Maximum Tool Length
- 600 mm
- Maximum Tool Diameter
- Ø 115 mm / Ø 300 mm
- Tool Changing Time: Chip-to-Chip
- 4.2 sec.
GENERAL
- Machine Weight
- 46,297 lbs. (21,000 kg)
- Machine Control
- FANUC
- Floor Space
- 16.38 ft (L) x 19.89 ft (W) x 13.5 (H)
