Nakamura-Tome
NTY3-100V

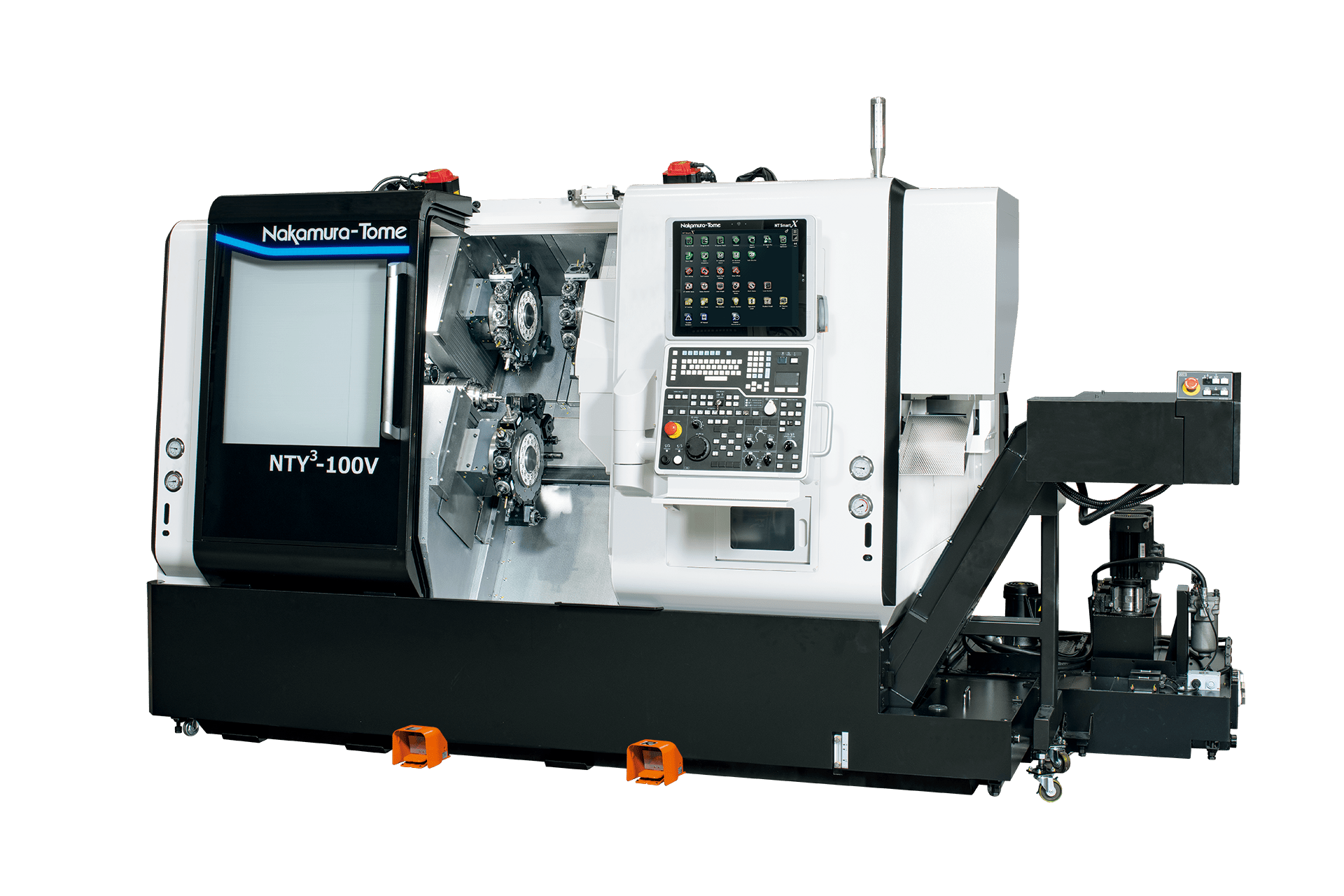

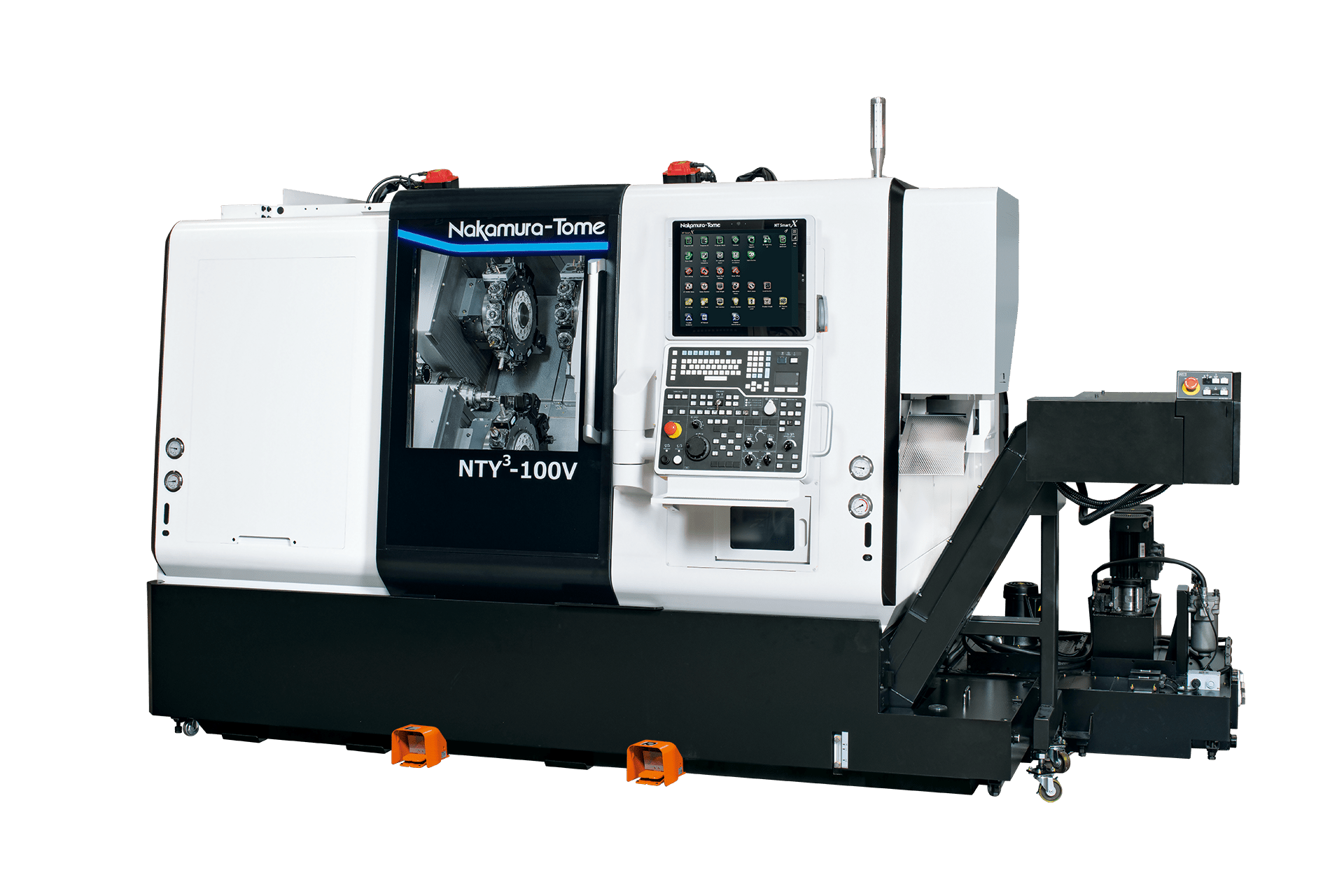

Nakamura-Tome has introduced the NTY3-100V, a high-productivity multitasking turning center that is at the cutting edge of speed.

The second machine in the “V series” of Nakamura-Tome, the NTY3-100V prioritizes speed as its core design concept.

Standard equipment includes Y-axis capabilities on all (3) turrets and opposed twin spindles. Enhanced processing capabilities and simultaneous left/right and upper/lower machining reinforce speedy production.

ChronoCut software, unique to Nakamura-Tome, further reduces idle time by up to 30%, providing faster operations without compromising accuracy, even without any changes to the cutting conditions.

  • High-speed indexing
  • High-speed spindle synchronization
  • Execution of multiple M-codes within the same block
  • High-speed rigid tapping
  • Reduction of PC-G unloading time.
Request Information

Or call 1-877-668-4262. External Link. Opens in new window.

Download Brochure

Product Details

Features & Benefits

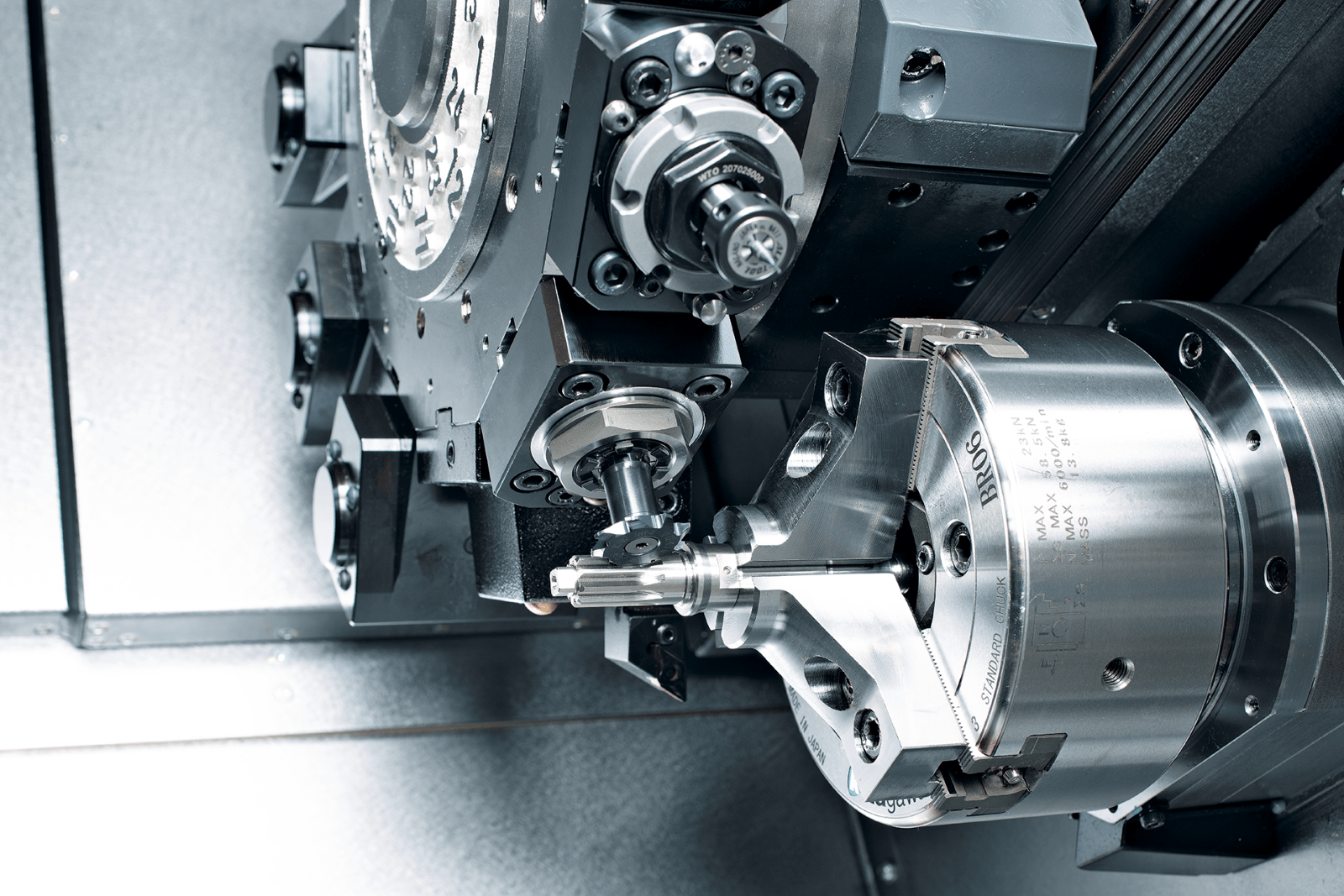

  • Opposing Two-Spindle, 3-Turret Construction
  • 72 Tool Stations
  • 36 Driven-Tool Stations
  • 3.3 in Y-axis travel on Upper Turrets
  • 2.55 in Y-axis travel on Lower Turret
  • 8000 RPM Driven-Tool Speed (All 3 Turrets )
  • 15/10 HP Left and Right Spindle Motor
  • 7.5 HPx3 Driven-Tool Motor (Upper / Lower)
  • 2 in Bar Capacity

Technical Data

Capacity
2 in. (50.8 mm)
Max Turning Diameter
7.87 (200) in (mm)
Max Turning Length
23.1 (588 mm)
Bar Capacity
2 in (50.8 mm)
Bar Capacity L-Spindle
2.0 in. (51 mm)
Bar Capacity R-Spindle
1.7 in. (42 mm)
Chuck size
6 in (165 mm)

Axis Travel

Slide Travel (B)
24.4 in. (620 mm)
Rapid feed (B)
1575 in/min (40 m/min)
Slide Travel (X1/X2/X3)
5.9 (150) / 5.9 (150) / 5.5 (141) in (mm)
Slide Travel (Z1/Z2/Z3)
9.64 (245) / 9.64 (245) / 22.7 (578) in (mm)
Slide Travel (Y1/Y2/Y3)
±1.65 (±42) / ±1.65 (±42) / ±1.28 (±32.5) in (mm)
Rapid Feed (X1, X2, X3)
787 in/min (20 m/min)
Rapid Feed (Z1, Z2, Z3)
1575 in/min (40 m/min)
Rapid Feed (Y1, Y2, Y3)
314 in/min (8 m/min)

Left and Right Spindle

Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
1.7 in (43 mm)

Right Spindle

Spindle Speed
6000 rpm
Spindle Speed Range
Stepless
Spindle Nose
A2-5
Hole Through Draw Tube
1.7 in (43 mm)

C-Axis

Least Input Increment
0.001°

Turret

Number of Tool Stations
12
Number of Indexing Positions
24

Rotating Tool

Rotary System
Individual Rotation
Spindle Speed
86000 rpm
Spindle Speed Range
Stepless
Number of Rotation Tool Station
12x3

Drive motor power

Main Spindle
15 HP
Right Spindle
15 HP
Driven Tool Spindle
9.5/3 HP

General

Machine Weight
22,046 lbs (10,000 kg)
