Home / Machines / Yasda / YBM 15T

Yasda

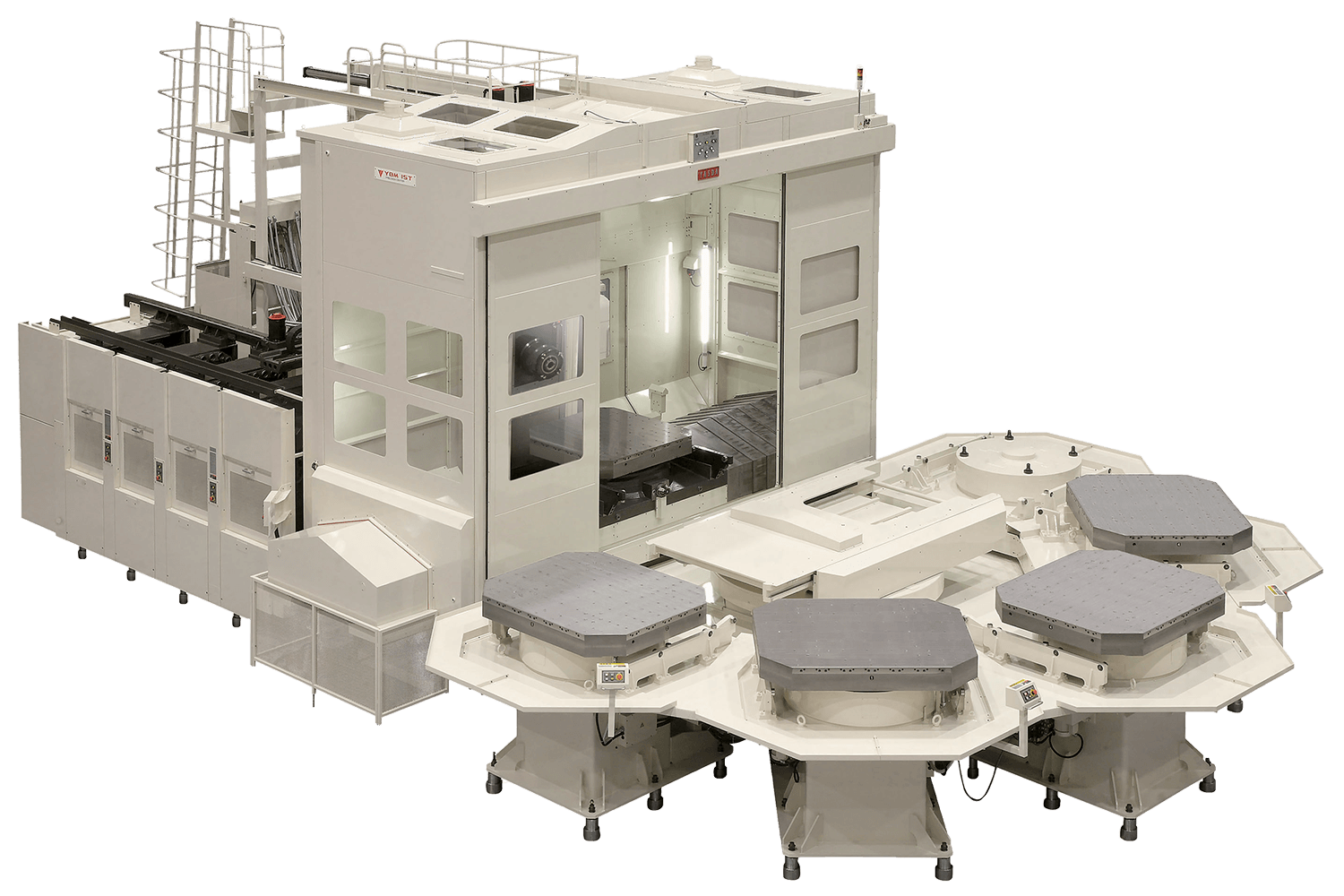

YBM 15T

High accuracy and durability of YBM 15T is realized by outstandingly rigid mechanical components, for example, bed and column designed symmetric to control thermal deformation, hardened die steel guide ways assuring durability of long strokes, highly rigid feed drive system with big diameter twin ball screws. These are improving positioning accuracy and machine supports machining cutters a lot and helps minimizing process running cost.

Request Information

Or call 1-877-668-4262

Download Brochure
Yasda YBM 15T sold by Methods Machine Tools

Product Details

Features & Benefits

  • Double Feed System with Quill Spindle and Column Feed
  • Thermal Distortion Stabilizing Systems
  • High Performance Spindle with Pre-load Self-adjusting System
  • Twin Ball Screws Drive System
  • High Speed and Highly Accurate Positioning of Heavy Components
  • Outstanding Turn Boring Capability Equivalent to Jig Borer Machine
  • YASDA HAS-3 Systems

Technical Data

Travel

X-Axis Travel
70.8 (1800) in (mm)
Y-Axis Travel
59 (1500) in (mm)
Z-Axis Travel
59 (1500) in (mm)
Distance from Table Surface to Spindle
0-59 (0-1500) in (mm)
Distance from Table Center to Spindle Nose Face
15.8-74.8 (400-1900) in (mm)

Feed Rate

Rapid Traverse - X Axis
788 (20) in/min (m/min)
Rapid Traverse - Y & Z Axis
944.8 (24) in/min (m/min)
Feed Rate
0.04-197 (1-5000) in/min (mm/min)

Table

Table Working Surface
59x59 (1500x1500) in (mm)
Table Loading Capacity
26456 (12000) lbs (kg)
Max Diameter of Workpiece
ø 80.8 (2050) in (mm)
Min. Table Indexing Angle
1E-4 degree

Spindle

Spindle Type
50-520/2800-37
Spindle Speed Range
30-2800 rpm (opt)
Spindle Taper
7/24 NT No.50 (BT50)

Tooling

Number of Tools
60/450 std (opt)
Maximum Tool Weight
55 (25) lbs (kg)
Maximum Tool Length
17.4, 21.7 (440, 550) in (mm)
Maximum Tool Diameter
ø 11.8 (300) in (mm)

General

Machine Weight
92595 (42000) lbs (kg)
Machine Control
FANUC 31i-B5 Plus
